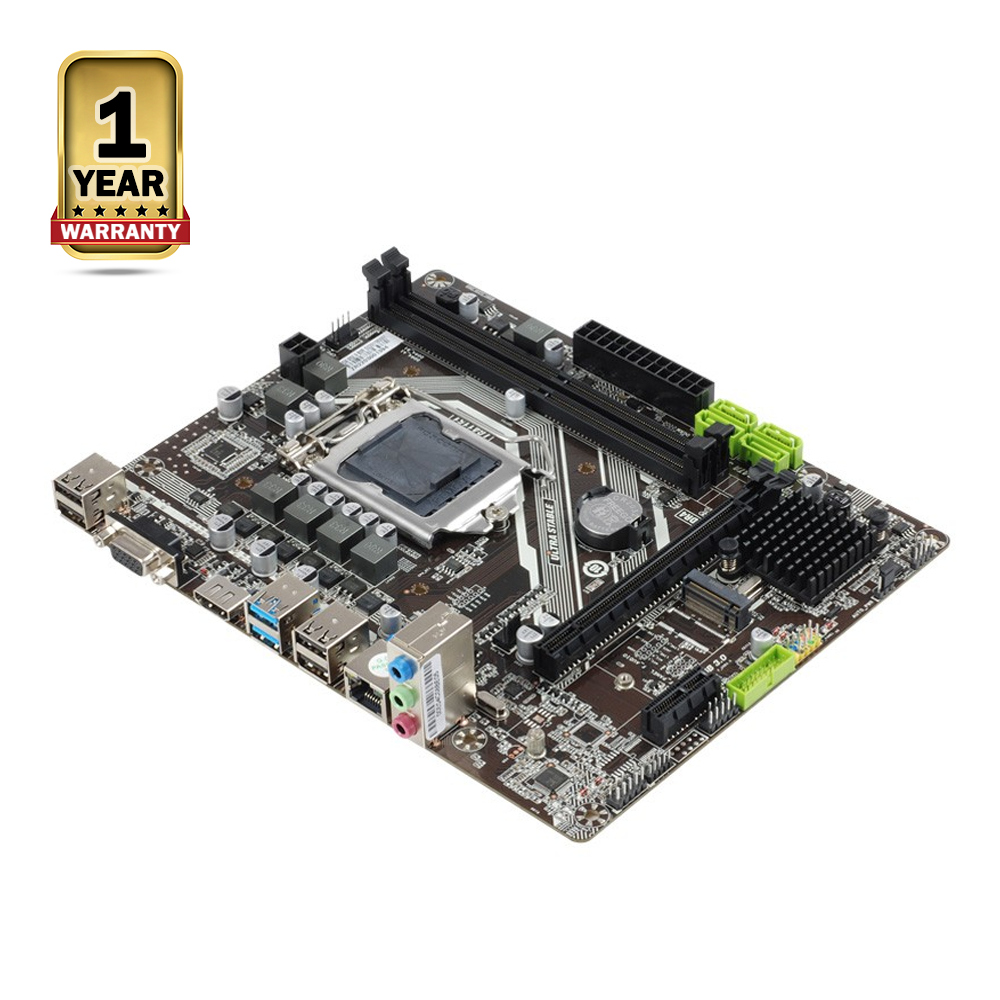

Esonic H110DA1 DDR-4 6th 7th 8th 9th Gen Support Nvme Motherboard

Esonic H110DA1 DDR-4 6th/7th/8th/9th Gen Support NVMe Motherboard:

General Information:

• Product Type: Motherboard
• Brand: Esonic
• Model: H110DA1
• Form Factor: M-ATX (Micro-ATX)

Processor Compatibility:

• Socket: Intel LGA1151
• Processor Support: 6th, 7th, 8th, and 9th Generation Intel Core i7, i5, i3 Processors

Chipset:

• Chipset: Intel® H110

Memory:

• Memory Support:
  • 2 x DDR4 DIMM slots
  • Supported speeds: 2133/2400/2666 MHz
  • Max Capacity: Up to 64GB
  • Dual Channel: Supported

Storage:

• NVMe Support: 1 x M.2 Socket (Supports 2260/2280 SSDs)
• SATA: 4 x SATA 6Gb/s Ports

Graphics:

• Integrated Graphics: Intel® HD Graphics (via supported processors)
• Video Output Ports: HDMI and VGA

Expansion Slots:

• 1 x PCIe x16 3.0/2.0 slot (for discrete GPUs or other expansion cards)
• 1 x PCIe x16 2.0 slot

Networking:

• LAN: Realtek Chip, supporting 100M Ethernet (with an optional 1000M upgrade)

Audio:

• Audio Codec: Realtek ALC, supporting 6-channel audio

USB:

• Ports:
  • 4 x USB 3.0 Ports (2 on the back panel, 2 on the mid-board)
  • 6 x USB 2.0 Ports (2 on the back panel, 2 on the mid-board)

Physical Specifications:

• Dimensions: 215 x 170mm
• Color: Black

Warranty:

• Official Warranty: 1 Year

This motherboard is designed for modern Intel processors, offering support for DDR4 memory and NVMe storage, making it suitable for users looking for high-speed performance in gaming or workstation builds.
