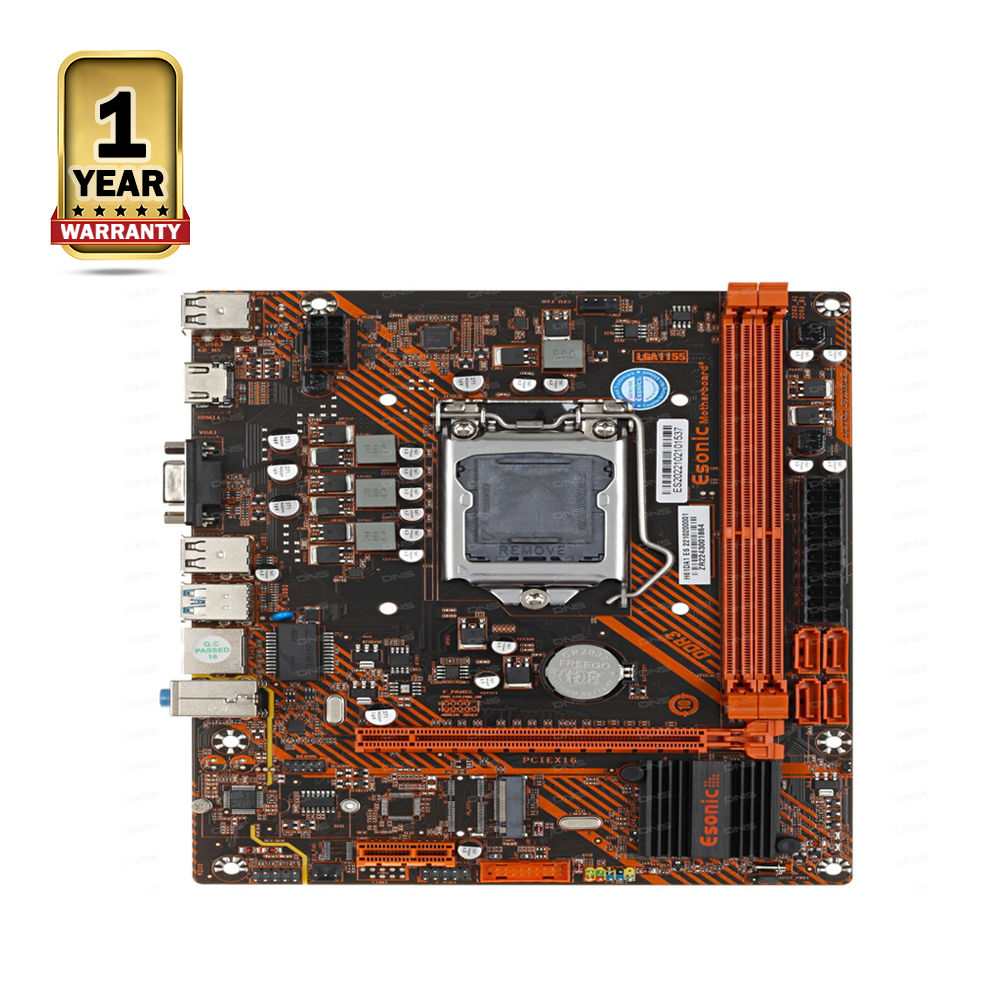

Esonic H61DA1 DDR-3 2nd/3rd Gen NVMe Support M-ATX Motherboard:
General Information:
- Product Type: Motherboard
- Brand: Esonic
- Model: H61DA1
- Form Factor: M-ATX (Micro-ATX)
Processor Compatibility:
- Socket: Intel Socket LGA1155
- Processor Support:
- 2nd and 3rd Generation Intel Core i7, i5, i3 Processors
Chipset:
Memory:
- Memory Support:
- 2 x DDR3 DIMM slots
- Supported speeds: 1066/1333/1600MHz
Graphics:
- Integrated Graphics:
- Intel® HD Graphics (via supported processors)
- Video Output Ports: HD and VGA
Expansion Slots:
- 1 x PCIe x16 slot (for discrete GPUs or other expansion cards)
- 1 x PCIe x1 slot
Storage:
- NVMe Support: 1 x M.2 NVMe slot, supporting 2242 SSD
- SATA: 4 x SATA 3Gb/s Ports
Networking:
- LAN: Realtek Chip, supporting 100M Ethernet (with an optional 1000M upgrade)
Audio:
- Audio Codec: Realtek ALC, supporting 6-channel audio output
USB:
- Ports:
- 10 x USB 2.0 Ports (6 on the back panel, 4 on the mid-board)
Physical Specifications:
- Dimensions: 213 x 170mm
- Color: Black
Warranty:
- Official Warranty: 1 Year
This motherboard is suitable for budget builds with support for 2nd and 3rd generation Intel processors, basic NVMe storage options, and integrated graphics, making it ideal for users who need a functional and cost-effective platform.
