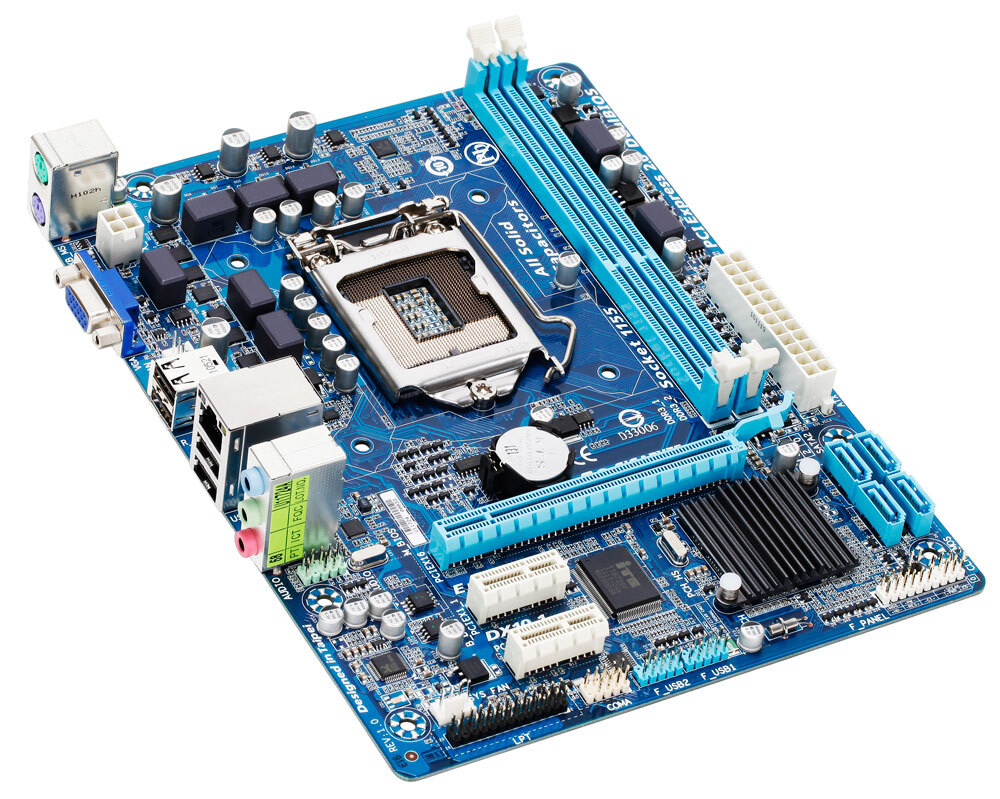

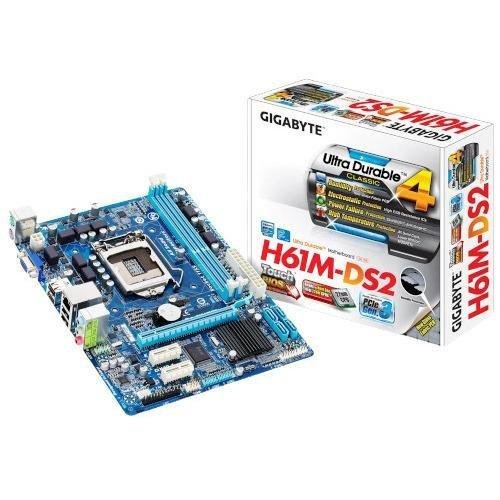

Gigabyte GA-H61M-DS2 2nd and 3rd Gen Motherboard

Gigabyte GA-H61M-DS2 2nd and 3rd Gen Motherboard – Product Specifications

Basic Information:

• Chipset: Intel® H61 Express Chipset
• Form Factor: Micro ATX, 22.6cm x 17.4cm
• BIOS:
  • 2 x 32 Mbit flash, licensed AWARD BIOS
  • Supports DualBIOS™, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

CPU Support:

• Compatible with Intel® Core™ i7, Core™ i5, Core™ i3, Pentium®, and Celeron® processors in the LGA1155 package.
• L3 cache varies based on the CPU model.

Memory:

• Slots: 2 x DDR3 DIMM sockets (1.5V)
• Maximum Capacity: Up to 16 GB of system memory
• Supported Memory:
  • DDR3 1333/1066/800 MHz memory modules
  • Dual-channel memory architecture
  • Non-ECC memory modules

Graphics:

• Integrated Graphics Processor
• Display Port: 1 x D-Sub (VGA) port

Audio:

• Realtek ALC887 audio codec
• Supports 2/4/5.1/7.1-channel High Definition Audio

Expansion Slots:

• 1 x PCI Express x16 slot (running at x16)
• 2 x PCI Express x1 slots

Storage:

• 4 x SATA 3Gb/s connectors, supporting up to 4 SATA 3Gb/s devices

LAN:

• 1 x Atheros GbE LAN chip (10/100/1000 Mbit)

Internal I/O Ports:

• Power Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
• Fan Headers:
  • 1 x CPU fan header
  • 1 x system fan header
• Other Headers:
  • 1 x front panel header
  • 1 x front panel audio header
  • 2 x USB 2.0/1.1 headers
  • 1 x parallel port header
  • 1 x serial port header
  • 1 x clearing CMOS jumper

USB Ports:

• Up to 8 USB 2.0/1.1 ports:
  • 4 ports on the back panel
  • 4 available through internal USB headers

Warranty: 3 Years Manufacturing Warranty
