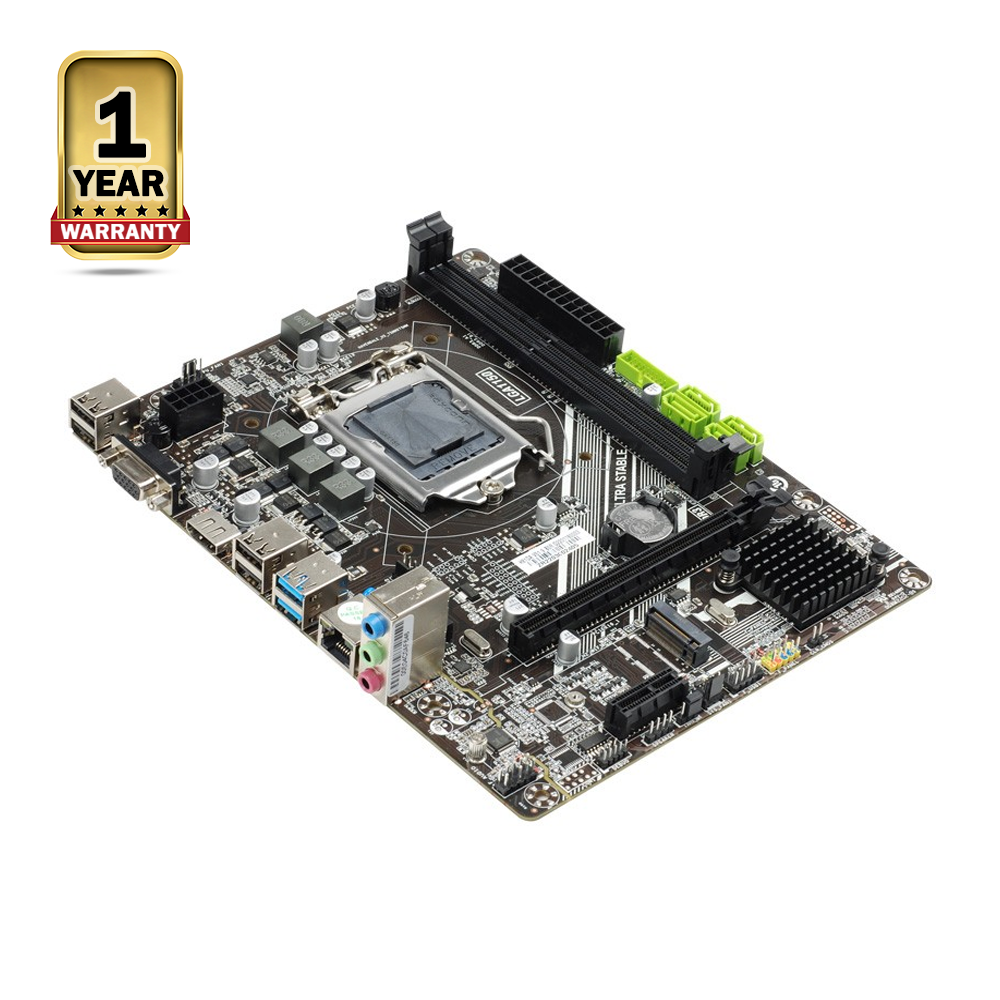

Esonic H81DA1 DDR-3 Intel 4th Gen NVMe Support M-ATX Motherboard:
General Information:
- Product Type: Motherboard
- Brand: Esonic
- Model: H81DA1
- Form Factor: M-ATX (Micro-ATX)
Processor Compatibility:
- Socket: Intel LGA1150
- Processor Support: 4th Generation Intel Core i7, i5, i3 Processors
Chipset:
Memory:
- Memory Support:
- 2 x DDR3 DIMM slots
- Supported speeds: 1333/1600MHz
Storage:
- NVMe Support: 1 x M.2 NVMe slot (Supports 2242 SSD)
- SATA: 4 x SATA 6Gb/s Ports
Graphics:
- Integrated Graphics: Intel® HD Graphics (via supported processors)
- Video Output Ports: HDMI and VGA
Expansion Slots:
- 1 x PCIe x16 3.0/2.0 slot (for discrete GPUs or other expansion cards)
- 1 x PCIe x1 2.0 slot
Networking:
- LAN: Realtek Chip, supporting 100M Ethernet (with an optional 1000M upgrade)
Audio:
- Audio Codec: Realtek ALC, supporting 6-channel audio
USB:
- Ports:
- 4 x USB 3.0 Ports
- 6 x USB 2.0 Ports
Physical Specifications:
- Dimensions: 215 x 170mm
- Color: Black
Warranty:
- Official Warranty: 1 Year
This motherboard is ideal for those looking to build systems based on 4th-generation Intel processors with a balance between legacy support (SATA, VGA) and modern options like NVMe storage. The inclusion of multiple USB 3.0 ports ensures faster data transfer.
